Stainless steel profiles are used in engineering construction and are based on the good corrosion resistance of stainless steel, so it can permanently maintain the integrity of the engineering design of structural components.

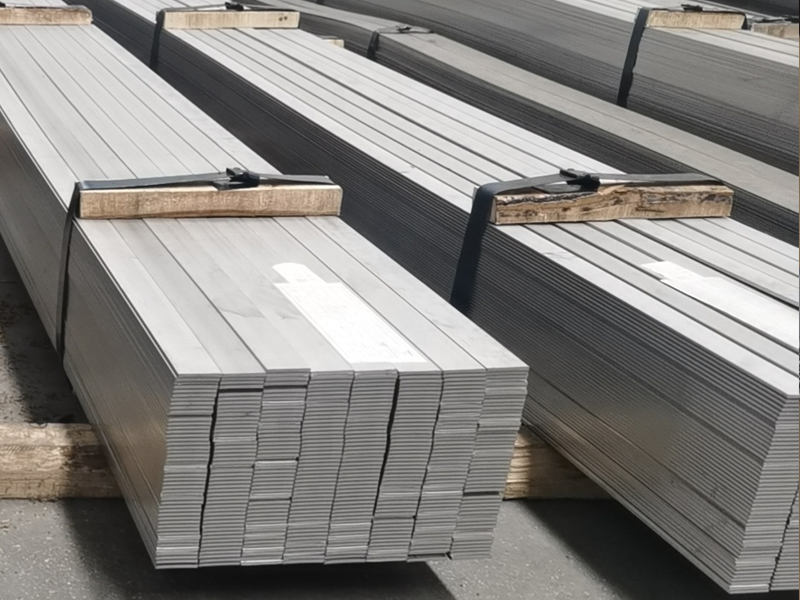

Product Name | Steel Flat Bar |
Application | Factory construction |
Tolerance | ±1% |
Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
Delivery Time | 8-14 days |
Type | Alloy Steel Bar |
Length | 1000-6000mm |
Thickness | 1.5-30mm |
Width | 1000-1500mm or as required |
Grade | C | Si | Mn | p | S | Ni | Cr | Mo | N |
254SMO | ≤0 .02 | ≤0.8 | ≤1.0 | ≤0.04 | ≤ 0.03 | 17.5-18.5 | 19.5-20.5 | 6.0-6.5 | 0.18-0.20 |
904L | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 | ≤0.1 |
654SMO | ≤0 .02 | ≤0 .5 | 2.0-4.0 | ≤0.03 | ≤0.005 | 21.0-23.0 | 24.0-25.0 | 7.0-8.0 | 0.45-0.55 |
253MA | 0.05-0.1 | 1.4-2.0 | - | ≤0.045 | ≤ 0.03 | 10.0-12.0 | 20.0-22.0 | - | 0.14-0.20 |
AL-6XN | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.04 | ≤ 0.01 | 23.5-25.5 | 20.0-22.0 | 6.0-7.0 | 0.18-0.25 |
304 | ≤0 .08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - | - |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16.0 -18.0 | 2.0 -3.0 | - |
S32760 | ≤ 0 .03 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.015 | 6.0-8.0 | 24.0 -26.0 | 3.0-4.0 | 0.2-0.3 |
S32750 | ≤ 0 .03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 2.0-3.0 | 0.24-0.32 |
Grade | State | Hardness HV | Yield Strength | Tensile Strength | Elongation(%) |
SUS304 | ANN | <200 | >205 | >520 | >40 |
1/4H | 200-250 | >255 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS301 | ANN | <250 | >205 | >520 | >40 |
1/4H | 250-310 | >470 | >780 | >35 | |
1/2H | 310-370 | >510 | >930 | >10 | |
3/4H | 370-430 | >745 | >1130 | >5 | |
H | 430-490 | >1030 | >1320 | >3 | |
EH | 490-550 | >1275 | >1570 | -- | |
SH | >550 | >1500 | >1850 | -- | |
SUS201 | ANN | <200 | >205 | >515 | >40 |
1/4H | 200-250 | >250 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS430 | ANN | <200 | >205 | >450 | >22 |
1/2H | 200-250 | >330 | >505 | >10 | |
H | 250-310 | >420 | >750 | >6 | |
SUS443 | ANN | <200 | >305 | >483 | >31 |
SUS310S | ≤200 | <200 | >205 | >520 | >40 |
SUS316L | ≤200 | <200 | >310 | >620 | >40 |
Standard export seaworthy packing.
3-20 days after confirming order, detail delivery data should be decided according toproduction season and order quantity.
